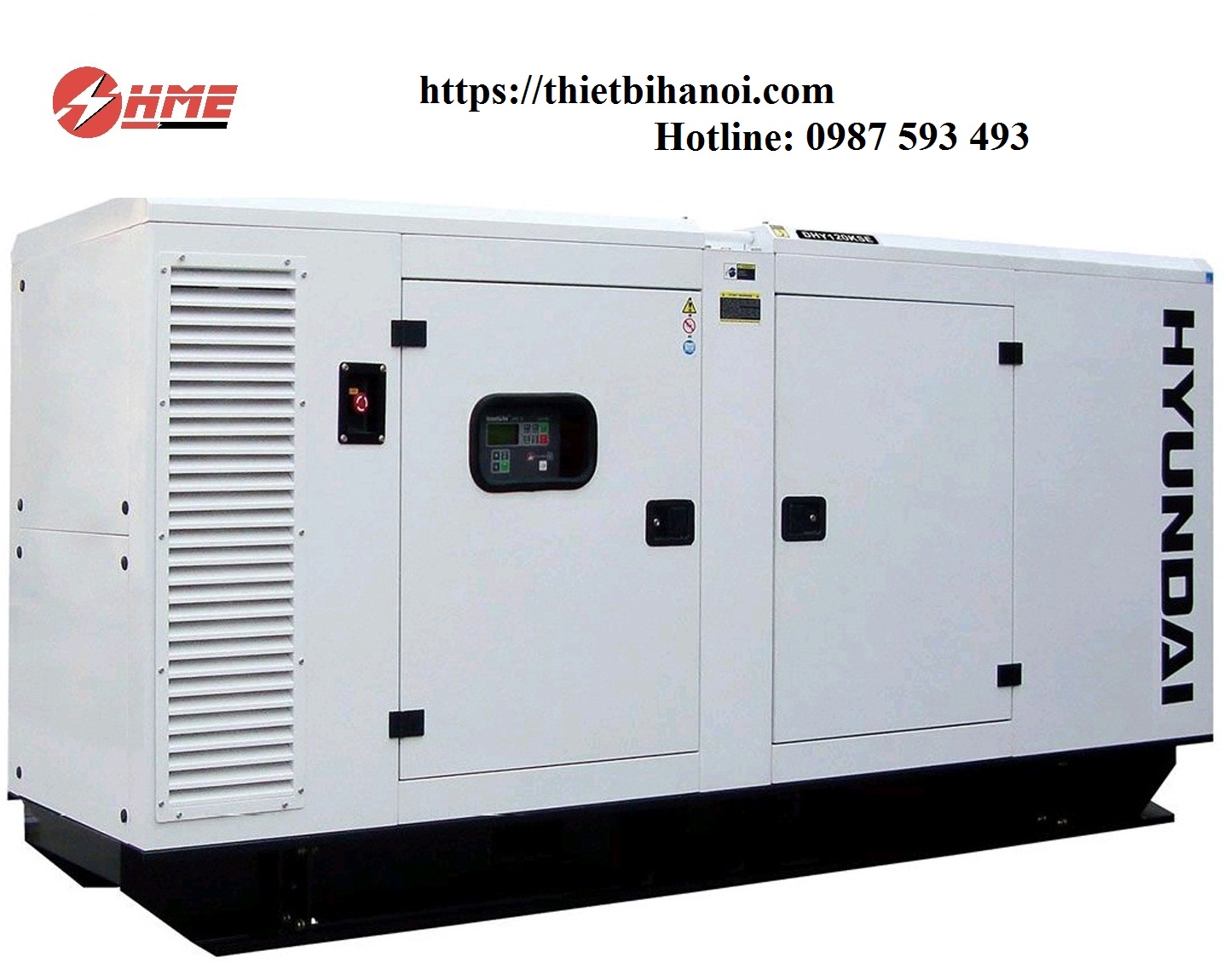

DHY325KE
Updating
|
MODEL |
DHY325KE |
|
Frequency |
50 Hz |
|
Prime/ Standby Power |
295KVA / 325KVA |
|
Alternator |
444C |
|
Rated voltage |
230 / 400 V |
|
Rated rpm |
1500 rpm |
|
Power factor |
0.8 |
|
Phase and conecting type |
3 phase / 4 wire |
|
Insulation class / Protection grade |
IP23/ H |
|
Exciter type |
Brushless Exciter ( AVR ) |
|
Engine |
HY1080-F2 |
|
Engine mode |
Diezen , 4 cycle |
|
Compression ratio |
16.3 |
|
Bore*Stroke |
125 x 147 mm |
|
Displacement |
10.8L |
|
Cooling mode |
Water cooled |
|
Fuel |
Diesel oil |
|
Battery |
24 V |
|
Fuel consumption 100% load |
56L/h |
|
Dimension shelled Noise |
3900 x 1300 x 2020 mm |
|
Weight shelled Noise |
3150 Kg |
|
Control panel |
Digital |
