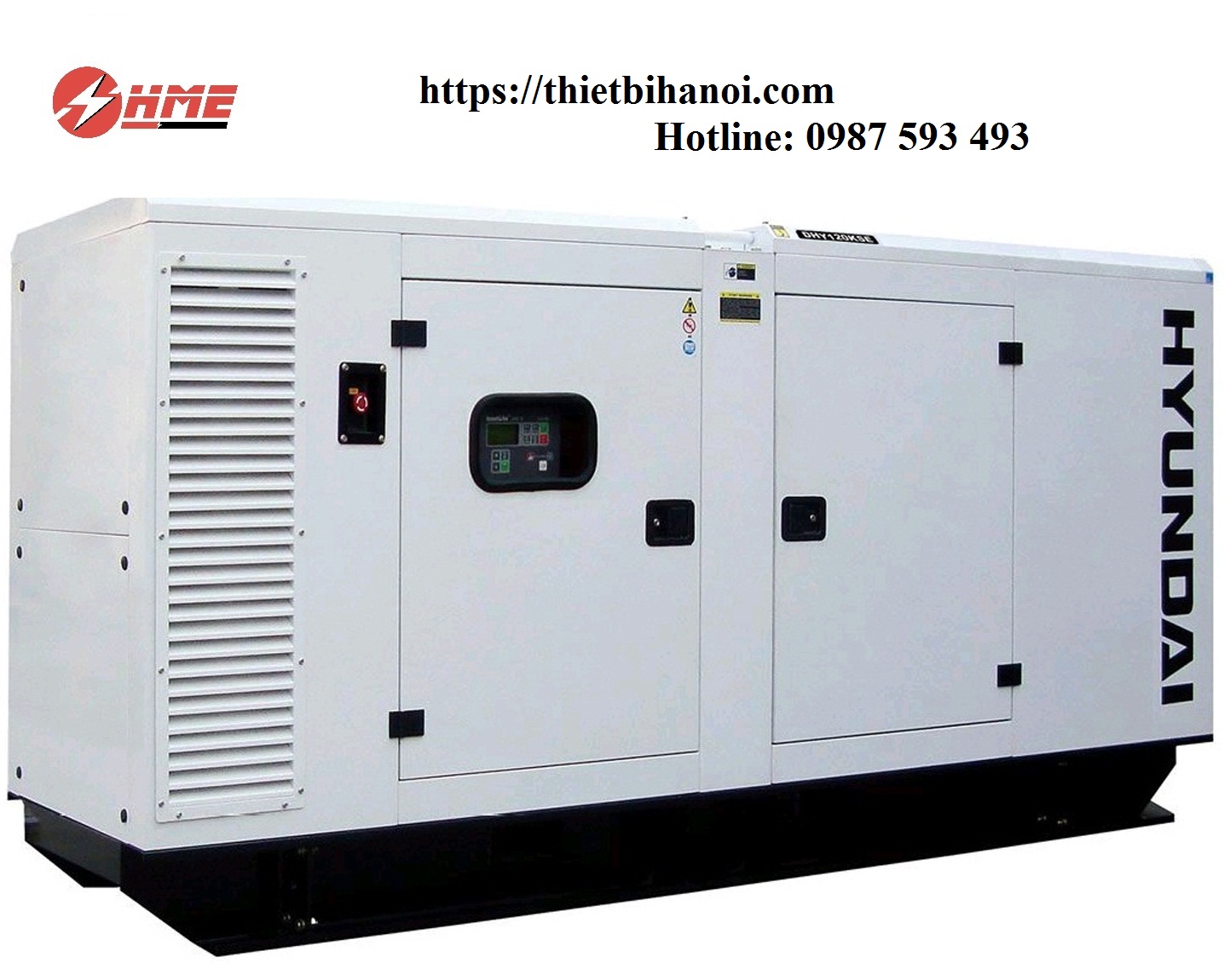

DHY35KE
Updating
|
MODEL |
DHY35KE |
|
Frequency |
50 Hz |
|
Prime/ Standby Power |
32KVA / 35.2KVA |
|
Alternator |
225D |
|
Rated voltage |
230 / 400 V |
|
Rated rpm |
1500 rpm |
|
Power factor |
1 |
|
Phase and conecting type |
3 phase / 4 wire |
|
Insulation class / Protection grade |
IP23/ H |
|
Exciter type |
Brushless Exciter ( AVR ) |
|
Engine |
HY4105 |
|
Engine mode |
Diezen , 4 cycle |
|
Compression ratio |
18 |
|
Bore*Stroke |
102 x 105 mm |
|
Displacement |
4.1L |
|
Cooling mode |
Water cooled |
|
Fuel |
Diesel oil |
|
Battery |
12 V |
|
Fuel consumption 100% load |
11.88L/h |
|
Dimension shelled Noise |
2200 x 950 x 1250 mm |
|
Weight shelled Noise |
1045 Kg |
|
Control panel |
Digital |
